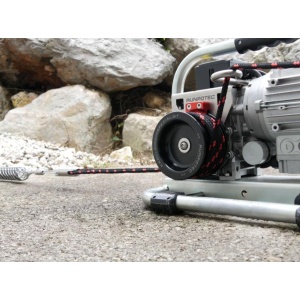

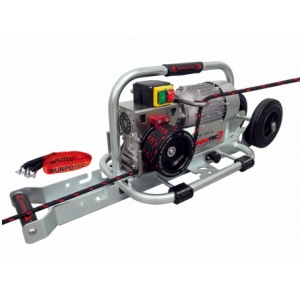

RUNPOTEC, CW 800 E - Vinci cu cabestan, carucior de transport inclus

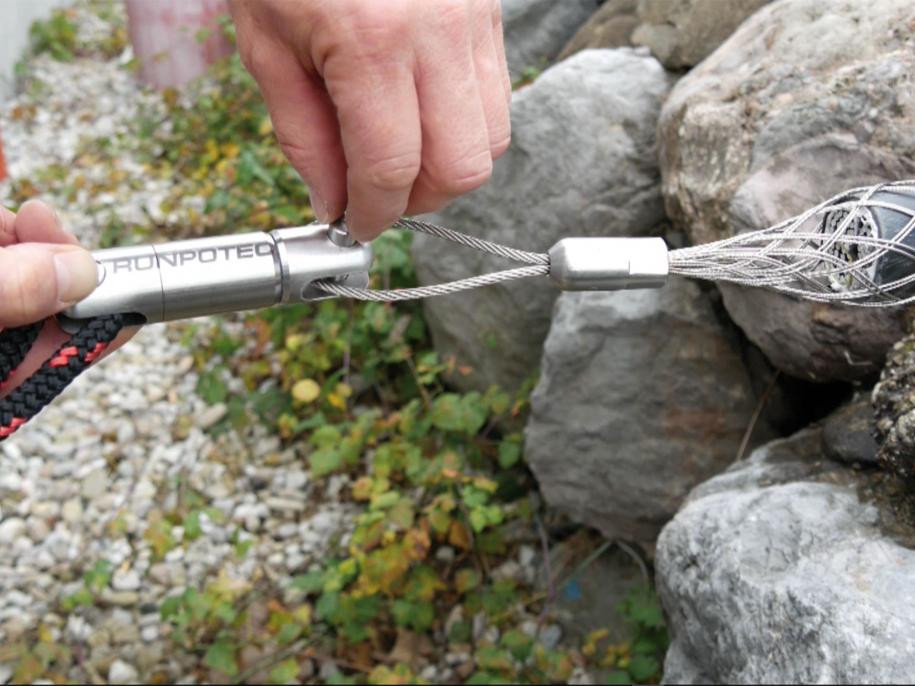

« PROMO »  La achizitia CW 800 E - Vinci cu cabestan, impreuna cu un Tragator de cablu si un Dispozitiv antirasucire, primiti Cadou  1 x Ciorap de tragere cu 1 ochi, cu diametru cuprins intre Ø 10 mm - 100 mm (in functie de nevoile dvs.)  si 1 x Ghidaj cablu cu 1 rola. Va rugam sa ne contactati telefonic pentru configurarea pachetului dorit.

...

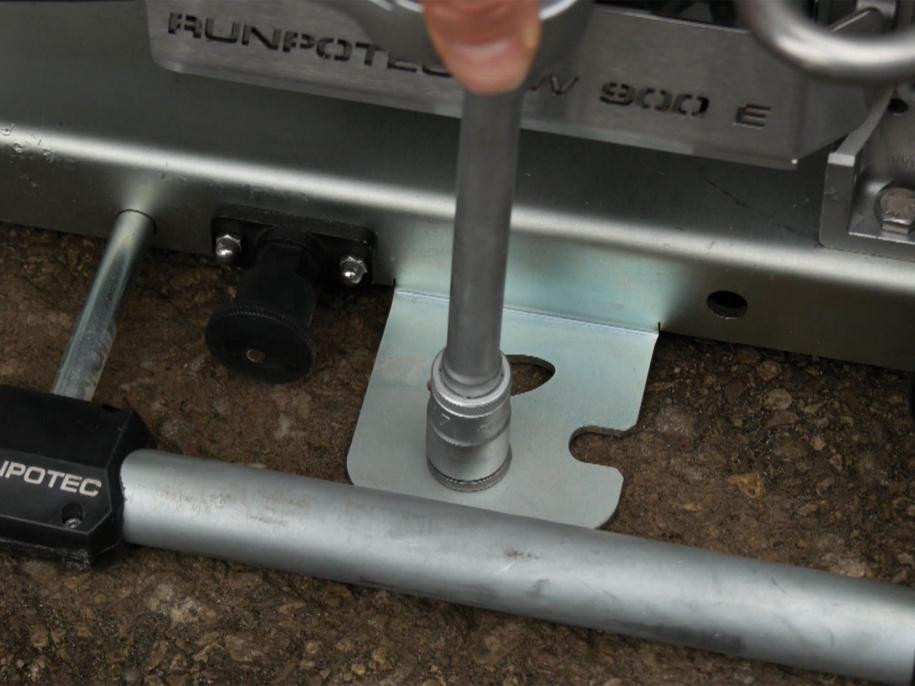

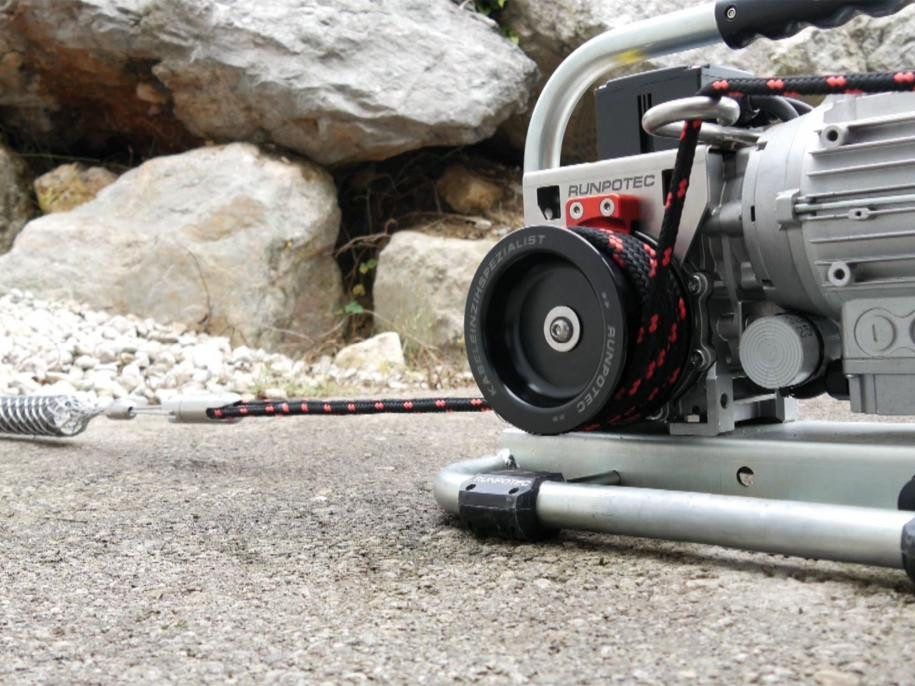

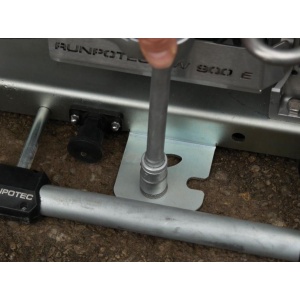

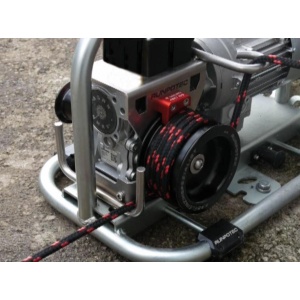

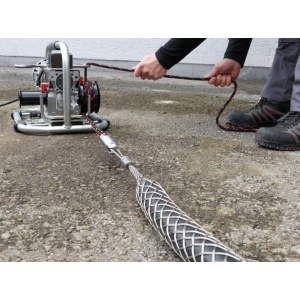

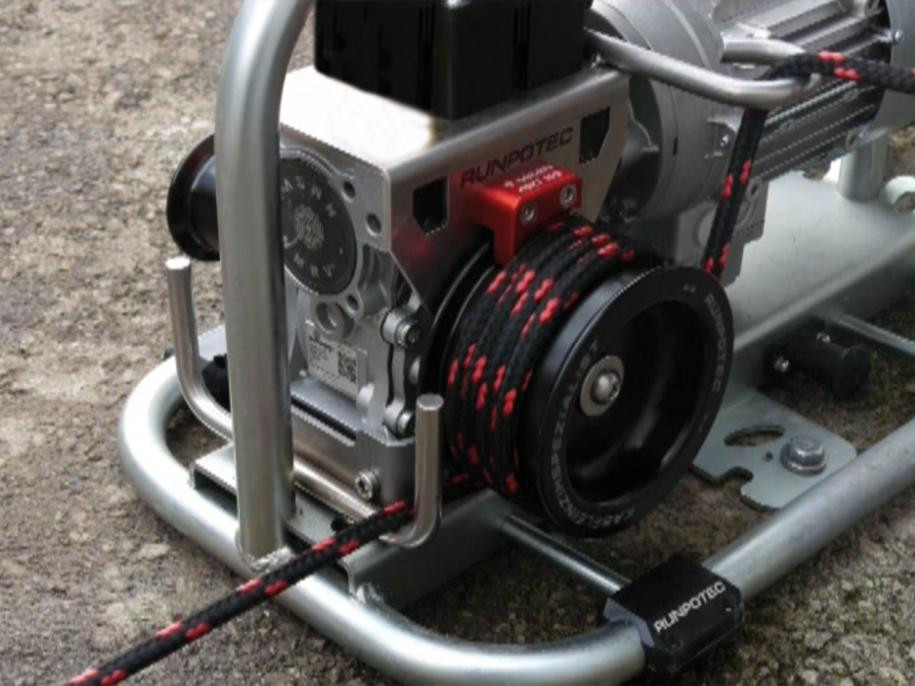

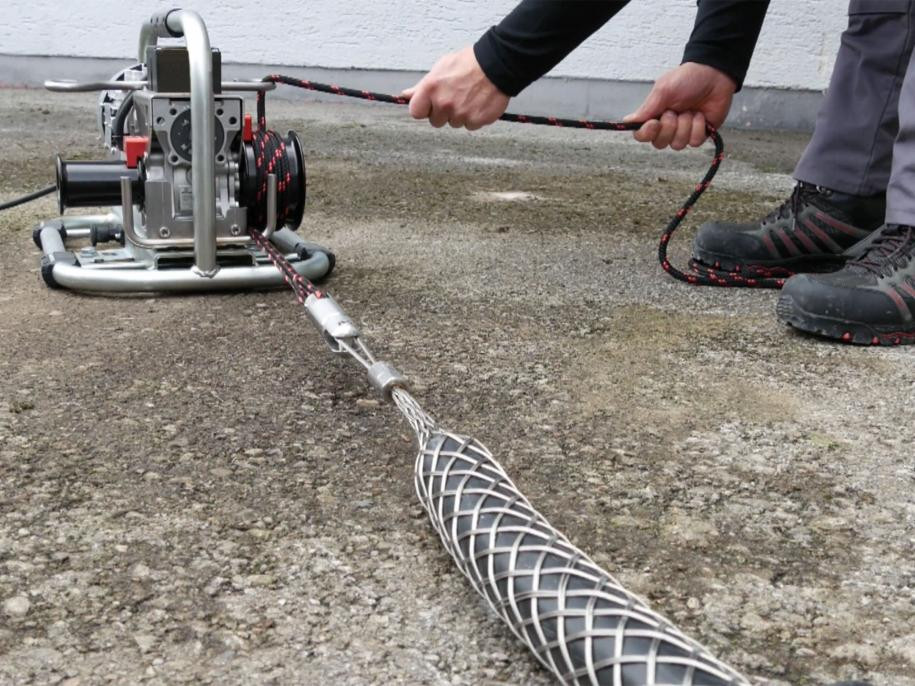

Ideally suited for horizontal pulling of one or more cables. Where several persons are needed for higher pulling loads on many sites, one person is sufficient to pull in the cables with the CW 800 E capstan winch by RUNPOTEC with a choice of 800 kg or 400 kg. The capstan winch can be fixed via the mounting holes or attached to solid objects with the enclosed strap. The trolley mounting rail also offers a very practical fastening option. It can be attached to the trailer hitch of a vehicle through the special coupling opening. It is also possible to mount the rail horizontally or vertically, and then simply hook in the CW 800 E capstan winch and fasten it using the two fixing bolts. Safety instructions: Not suitable for vertical cable pulling, must not be used to carry or lift loads or persons.
Optimal area of application: for horizontal cable pulling.
Application video: a short, very informative application video can be viewed by scanning the QR code or on www.RUNPOTEC.com.
Scope of supply: 1 x Capstan winch CW 800 E, 1 x trolley mounting rail, 1 x 3 m strap

Specificatii tehnice:

Dimensions: L 1000 x B 370 x H 330 mm
Weight: 41,20
Strap length: 3 Meter
Motor connection: 230 V / 50 Hz
Motor drive power: 0,75 KWh / 5,1 A
Motor speed: 1400 U / min
Capstan (Small) Pulling force: up to 800 kg at 4m per min.
Capstan (Large) Pulling force: up to 400 kg at 8m per min.
Protection rating: IP 55
